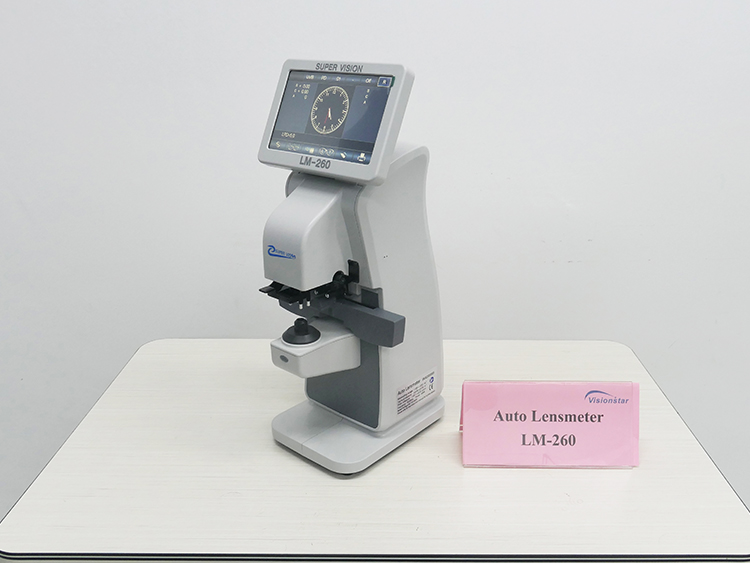

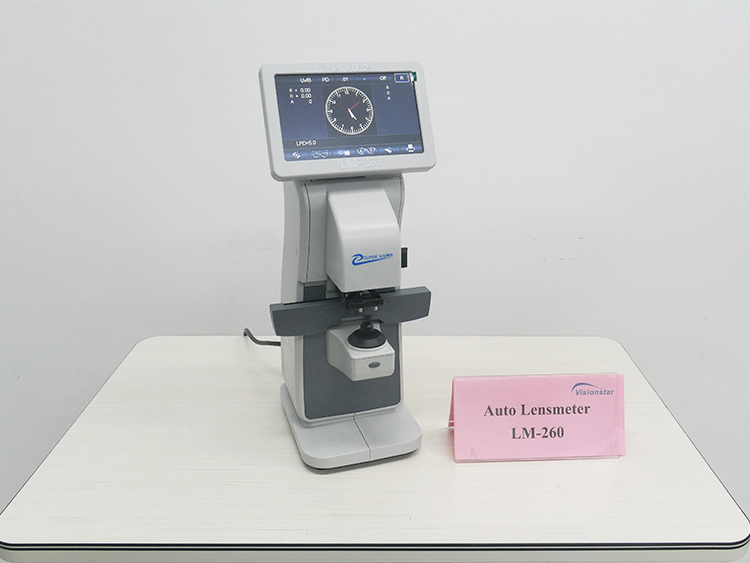

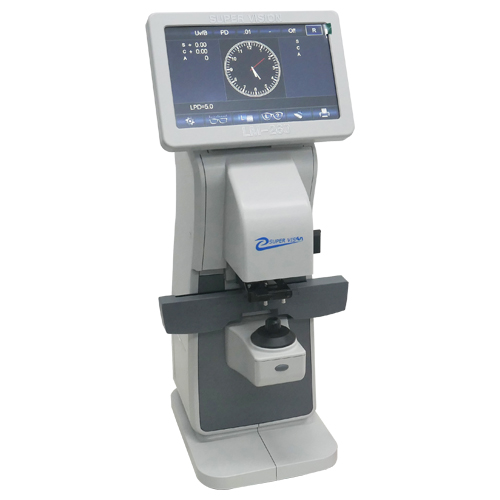

LM-260 Auto Lensmeter
LM-260 auto lensmeter is an accurate optical machine that is used to measure different type of lenses, including single vision, bifocal, progressive and other lenses. This lens meter also has additional function to test ultraviolet (UV) and blue light transmittance of lenses.
LM-260 Auto Lensmeter
Video:
Feature:
* Reversible HD touch LCD display
* High-end technology, precision assembly
* Modern, simple and high-end appearance
* Rapid and automatic recognition of progressive multifocal lenses
* The green LED light source ,does not need ABBE coefficient compensation
* Optimized and upgraded Hartmann multi-point measurement technology
* Pupil distance measurement function
* Ultraviolet/blue light transmittance measurement function
* Contact lens measurement function
* Fine dotting device
* Selective dotting pen
* UV transmittance measurement
* Pupil height measurement of lens frame
* External equipment for data transmission
* It can measure single light, double light, astigmatism, progressive multifocal light and other lenses
 |
 |
More Details:
 |
 |

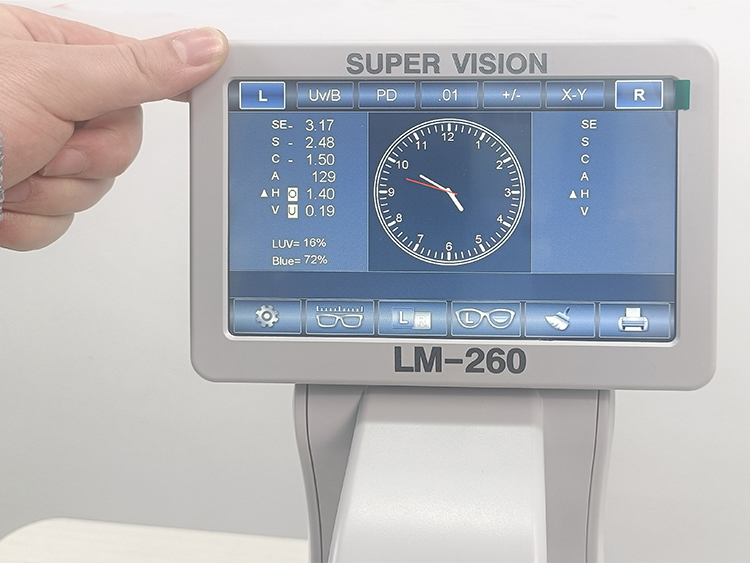

| Tilting LCD Touch Screen | Detachable Lens Support |
 |
 |

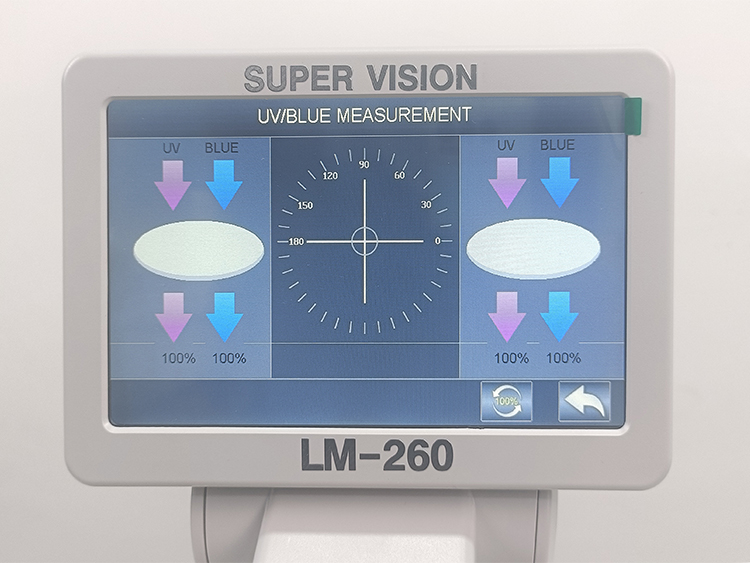

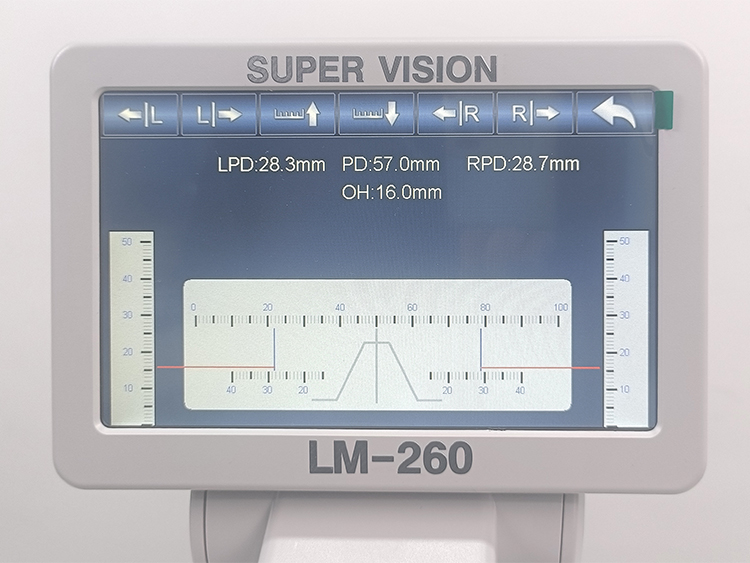

| UV/Blue Light Measurement | PD Measurement |
 |
 |

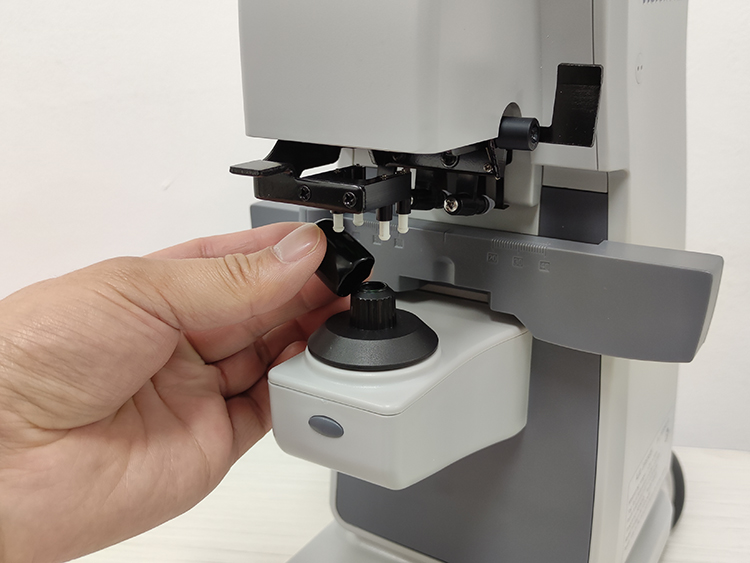

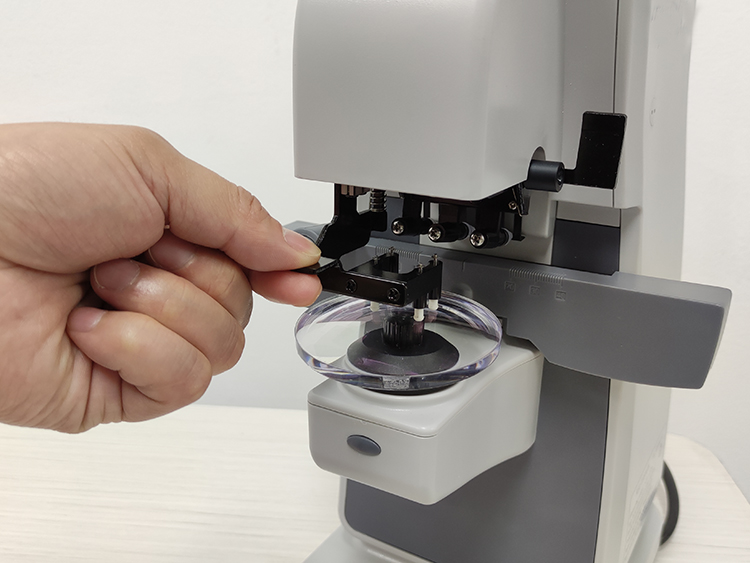

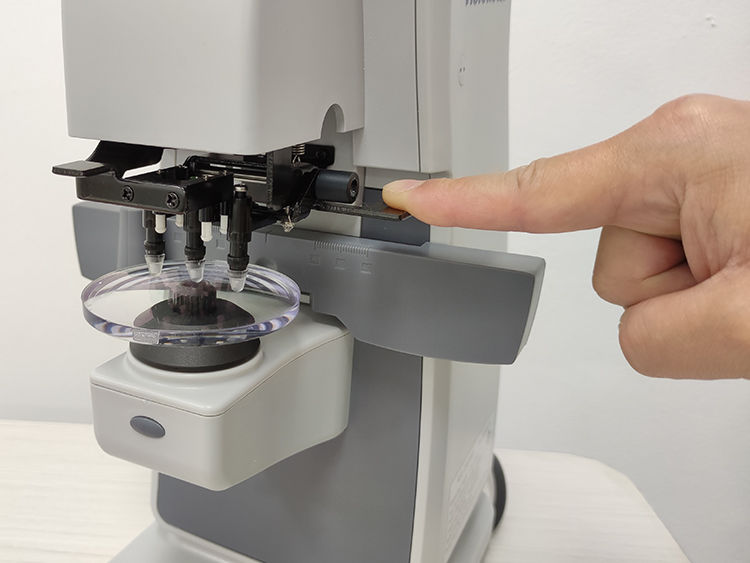

| Lens Pressing Unit | Lens Marking Unit |
 |
 |

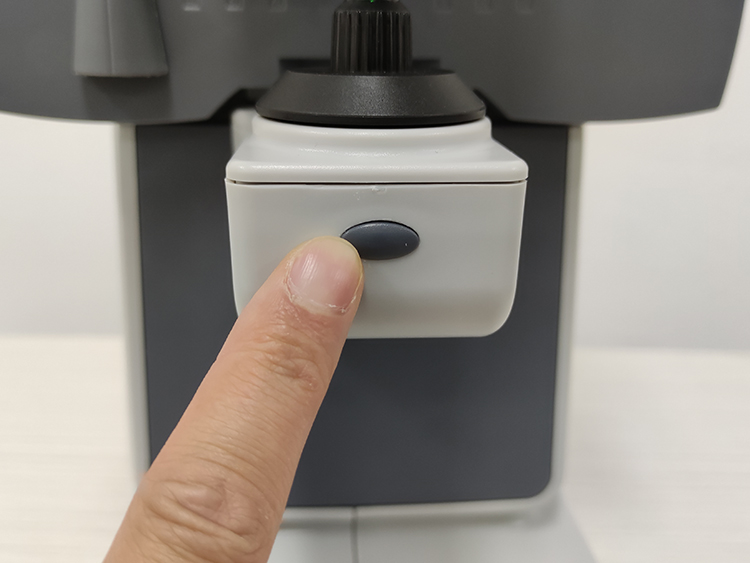

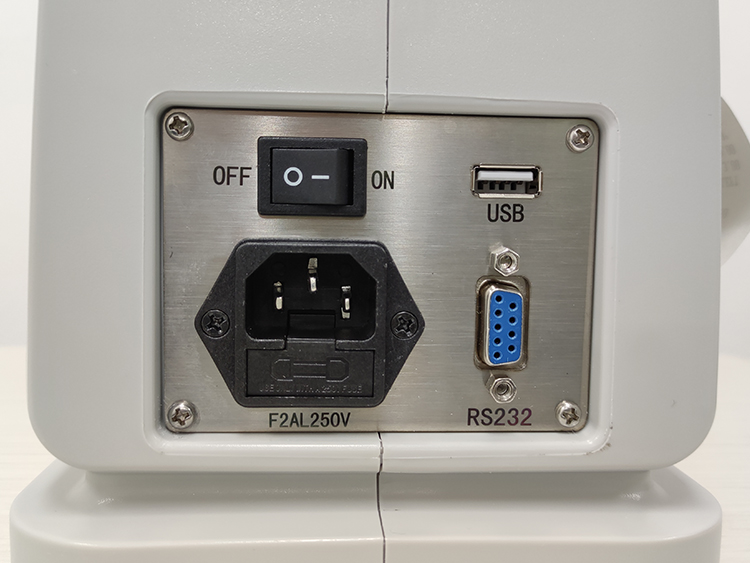

| Manual Read Key | USB and RS-232 Interface |
 |
 |

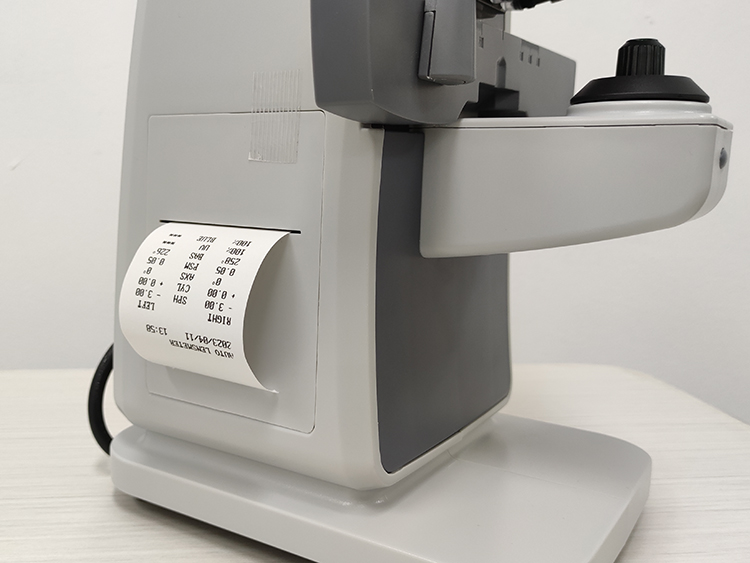

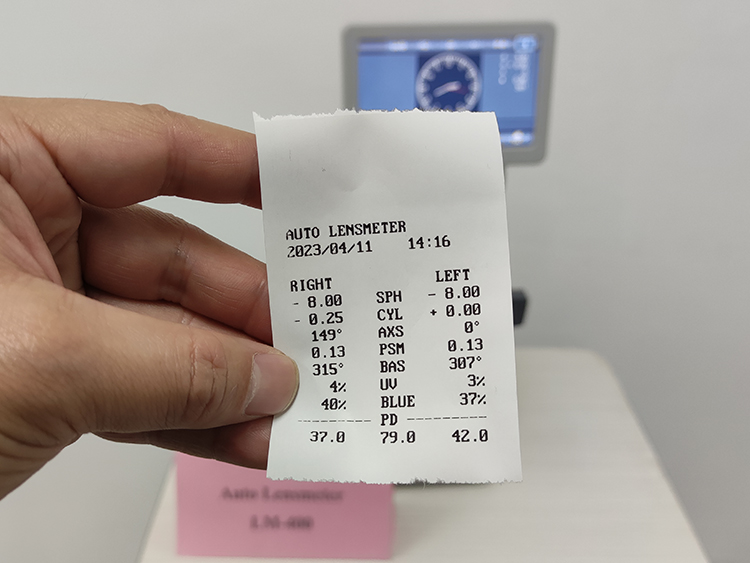

| Built-in Printer | Printed Measurement Results |
Specifications
|
Transmission Ratio of Measurable Lens |
> 10%, when the degree exceeds±10D, the transmittance of the lens is required to be > 20% |
|
Contact Lens |
0 to ±25D, BC 6.00 to 9.00 |
|
Display |
7.0-inch HD touch LCD display |
|
Menu |
User friendly design, simple and easy to operate |
|
Diameter of Lens Used |
20mm-100mm |
|
Power Supply |
AC 100 (+ 10%) – 240 (+ 10%) V50/60Hz 40VA |
|
Maximum Power |
40W |
|
Gross Weight |
6kg |
|
Box Size |
550mm * 300mm * 290mm (length * width * height) |
|
Environment Condition |
|
|
A. Temperature: 5-40℃ (service temperature) – 20-60 ℃(storage/transportation temperature) B. Humidity: 30-85% (no condensation) (use humidity) 10-95% (storage transportation humidity) C. Atmospheric pressure: 700-1060hpa D. Altitude: up to 2000m E. Others: no harmful dust and smoke |
|
|
Optional Accessories |
Printer (built-in thermal printer, paper width: 57mm) |
|
Spherical Mirror |
0 to ±35D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
|
Cylinder Sphere |
0 to ±10D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
|
Cylindrical Mirror Axis Position |
0°- 180°(reading accuracy: 1°） |
|
ADD |
0 to 10 D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
|
Prism |
0 to 15△ (0.01△ ) |
|
Reading Resolution |
0.01D/ 0.06D/ 0.12D/ 0.25D |
