SE-1200 Auto Lens Edger
SE-1200 is an automatic and patternless lens edging machine for opticians. It is configured with SC-1200 scanner, which can be connected with two lens edgers at the same time. This lens edger can store up to 500 template datas, and it can be used for edging different materials of eyeglass lenses, including resin, PC, glass, HC, HI, etc.

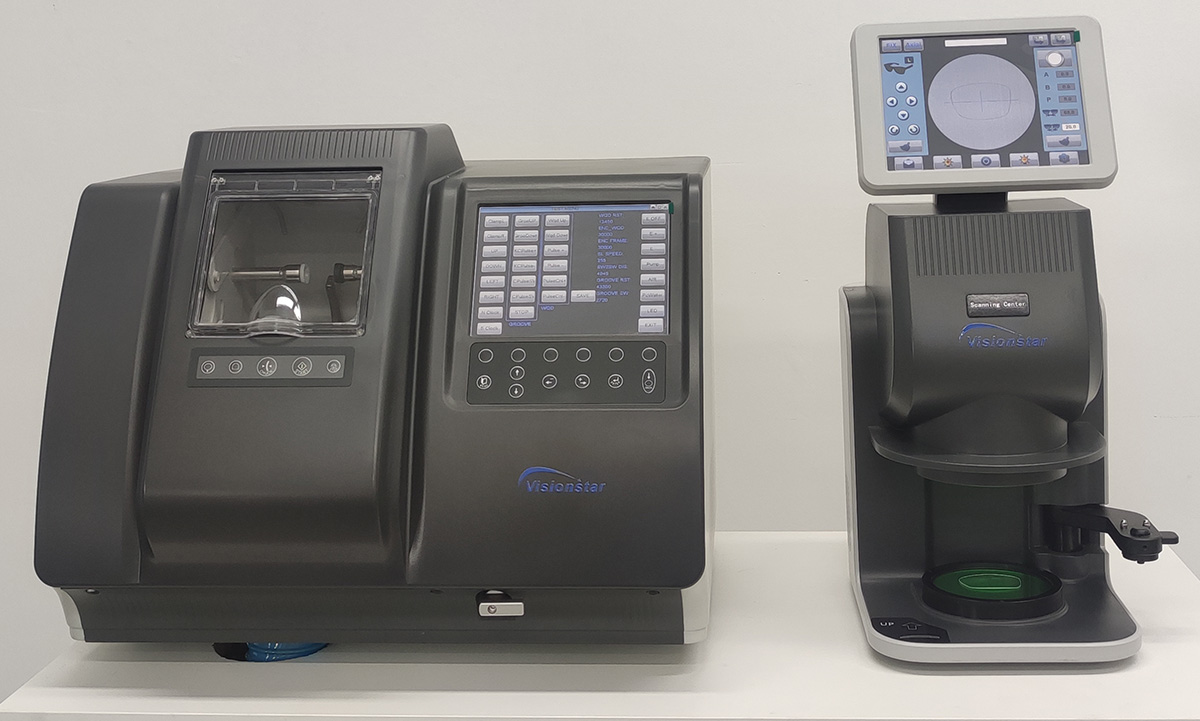

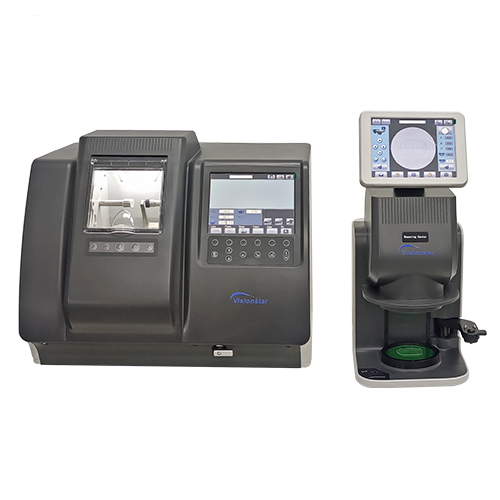

Auto Lens Edger with Auto Scanner SE-1200+SC-1200
Features:
1. Precision and stable EDGE-OS operating system.
2. Water supply system: Circulating pump water supply or solenoid valve.
3. Display: 8 inch color HD touch screen.
4. Grinding material: resin sheet, PC sheet, glass sheet (glass wheel needs to be customized for grinding glass sheet).
5. Scanning and positioning system: double telecentric optical imaging system.
 |
 |

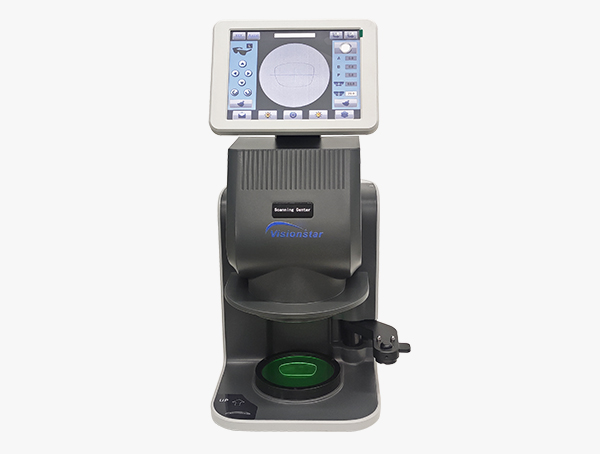

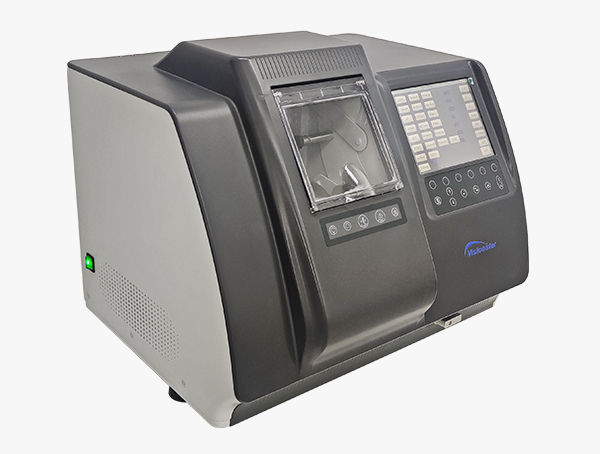

| Edger Unit | Scanner 8 inch HD touch screen |
 |
 |

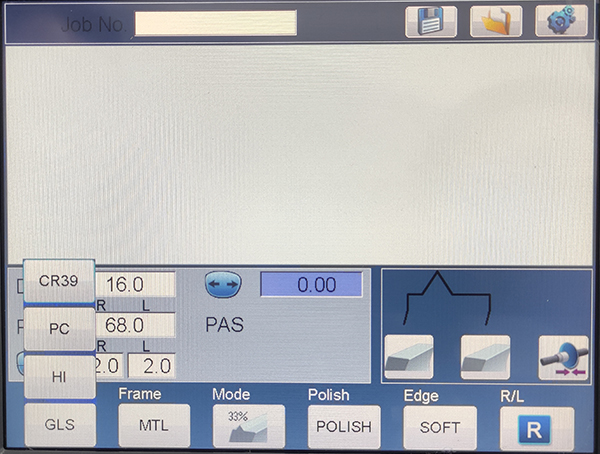

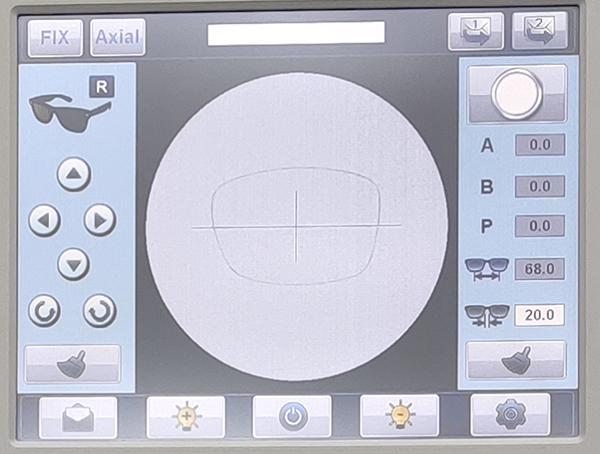

| Edger interface | Scanner interface |
 |
 |

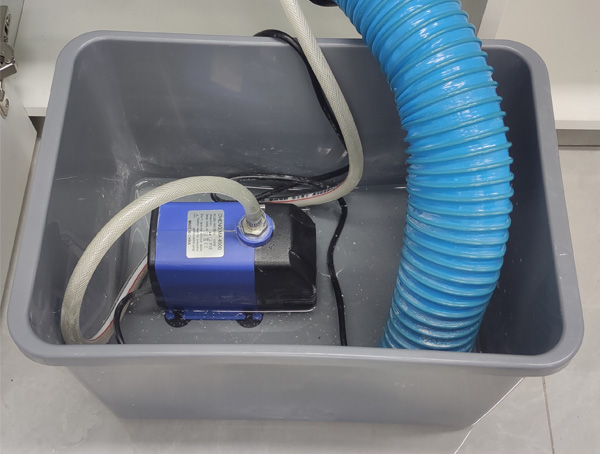

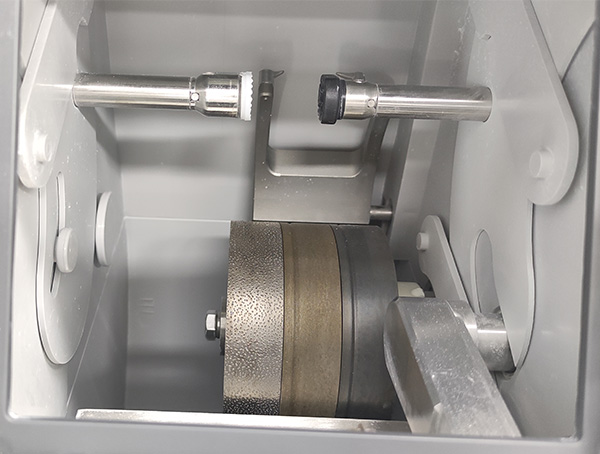

| Grinding wheel | Water tank, water pump, and water pipe |

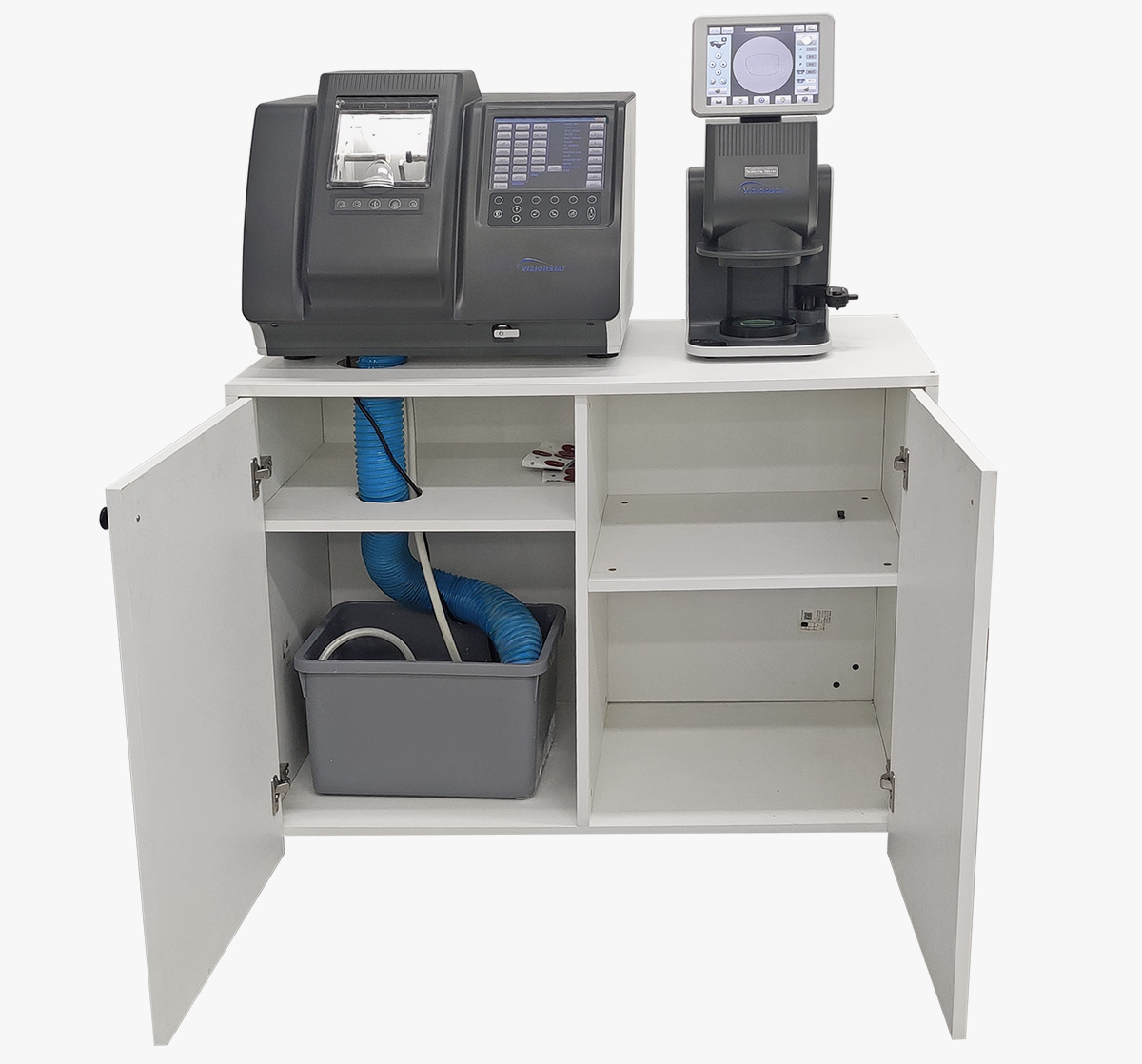

Optional Worktable
Technical Specifications:
| Auto Lens Edger | |
| Power supply | AC220V 50Hz 900W |
| Cutting diameter | <80mm |
| Grinding precision | +0.1mm |
| Grinding wheel diameter | 100mm |
| Sharp edge minimum processing size | 22mm |
| Flat edge minimum processing size | 20mm |
| Lens Scanner | |
| Number of stored images | 500 |
| Scan time | Less than 3 seconds |
| Scanning accuracy | ±0.1mm |
| Power supply | AC100-240V 50/60HZ 20VA |
